Yamaha Road Star 2008 Fuse Box Info

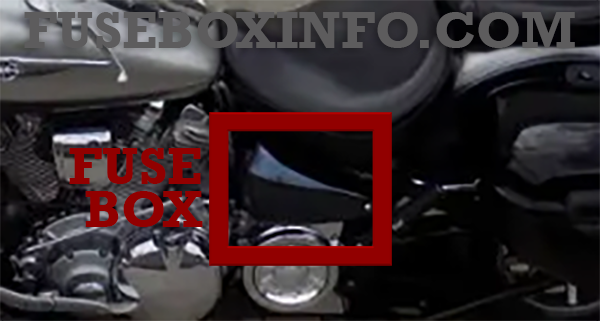

Fuse box location:
The fuse box is located behind panel A.
Fuse Box Diagram | Layout
| Fuse/Relay N° | Rating | Functions |
| 1 | - | Spare fuse |
| 2 | 15A | Signaling system fuse |
| 3 | 20A | Ignition fuse |
| 4 | 3A | Auxiliary DC connector fuse |
| 5 | 20A | Headlight fuse |
| 6 | 3A | Backup fuse (for odometer and clock) |
| 7 | 15A | Auto-decompression fuse |
The main fuse (50A), fuel injection system fuse (15A) and fuel injection system spare fuse are located in the starter relay case behind panel B.
