Kubota Utility Vehicle RTV-X Fuse Box Info
Cabin compartment fuse box location:

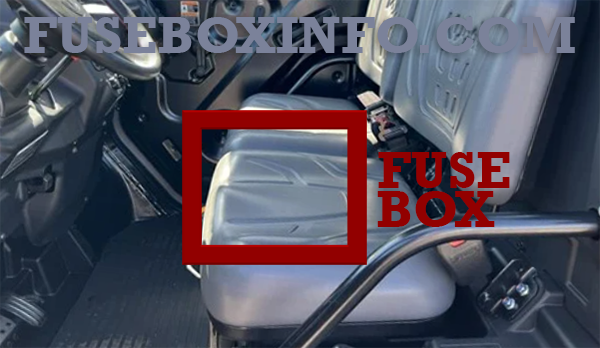

The cabin fuse box is located inside the cab under the seats, under the utility box and maintenance cover.
Fuse Box Diagram | Layout
Cabin compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 5A | Glow lamp |
| 2 | 5A | Starter relay |
| 3 | 10A | AUX back buzzer |
| 4 | 5A | Radiator fan relay |
| 5 | 10A | DC output |
| 6 | 5A | Brake lamp |
| 7 | 10A | Combi SW |
| 8 | 5A | Rotation SSR ALT 1 |
| 9 | 5A | Solenoid |
| 10 | 30A | Radiator fan |
| 11 | 10A | Brake lamp |
| 12 | 5A | Horn |
| 13 | 5A | Meter +B |
| 14 | 15A | Work light beacon fog lamp |
| 15 | 30A | Timer key stop |
| 16 | 30,15,10,5A | Spare |
| 17 | - | Fuse puller |

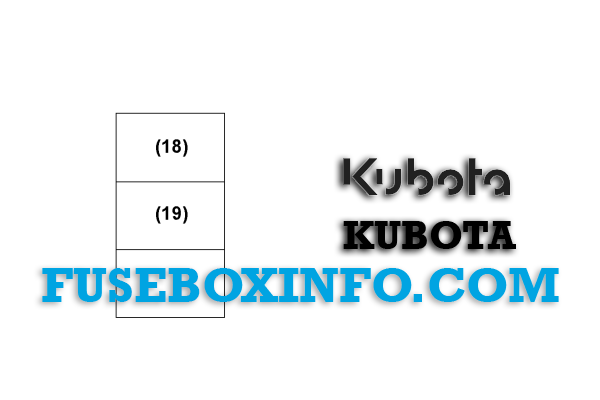

Cabin compartment fuse box (slow-blow fuses - are located inside the cab under the seats, under the utility box and maintenance cover, on the driver side):
| Fuse/Relay N° | Rating | Functions |
| 18 | 60A | Alternator |
| 19 | 50A | Ignition / starter |
