Kia EV6 2026 Fuse Box Info

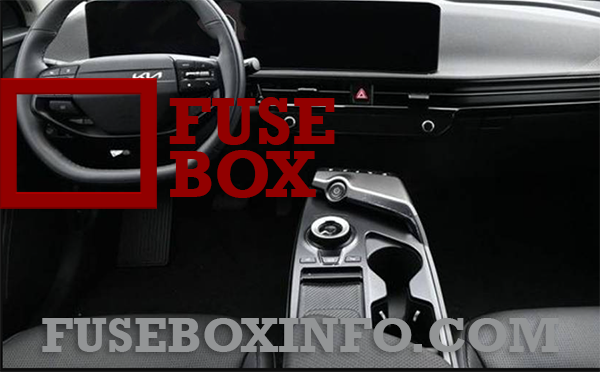

Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel.

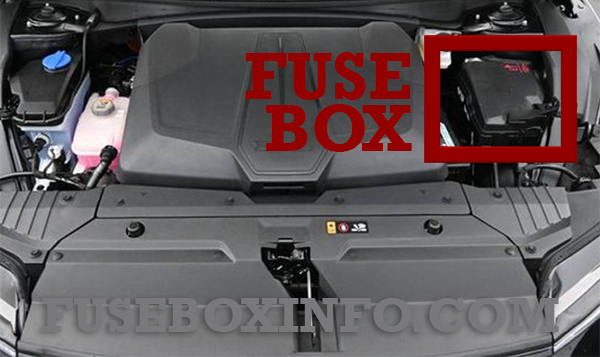

Engine compartment fuse box location:
Fuse Box Diagram | Layout

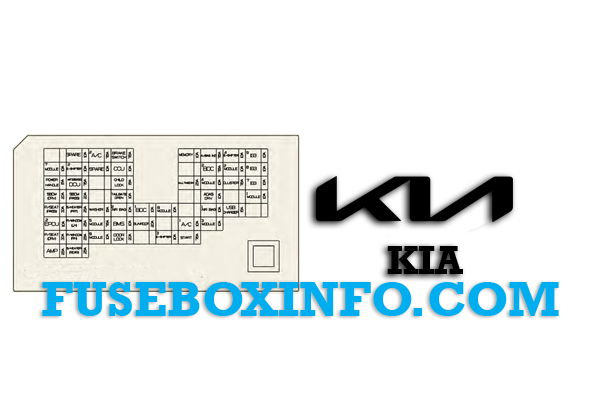

Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| CHILD LOCK |
15A | Child Lock Relay, Child Unlock Relay |
| AFCU | 20A | AFCU |
| A/BAG IND |
7.5A | Overhead Console |
| MEMORY2 | 10A | ADP, Head-Up Display, ADS Unit |
| START | 7.5A | VCU, IBU |
| TAILGATE OPEN |
15A | Liftgate Latch |
| 3 EPCU | 10A | Rear Inverter |
| MODULE3 | 7.5A | Multifunction Switch, IBU, Stop Lamp Switch, Driver Door Module |
| CLUSTER | 7.5A | Head-Up Display, Instrument Cluster |
| IG3 8 | 10A | cCNC, FATC, INCAR SNSR, PTC |
| IG3 7 | 10A | BMS, Rear Inverter |
| IAU | 10A | Driver/Passenger Door Outside Handle |
| MODULE4 | 10A | Driver/Passenger Power Seat Module, Driver/Passenger Manual Seat Switch |
| S/HEATER FRT |
20A | Front Air Ventilation Seat Control Module, Front Seat Warmer Control Module |
| WASHER | 15A | Multifunction Switch |
| IBU2 | 7.5A | BDC |
| IG3 10 | 10A | Rear Inverter, BMU |
| IG3 9 | 10A | CCU, ICCU, V2L UNIT, VCMS, Rear Electronic Oil Pump, SCU |
| BATTERY MANAGEMENT |
10A | BMU |
| AIR BAG2 |
10A | SRS Control Module |
| SUN ROOF1 |
25A | Sunroof Control Unit (Glass/Roller) |
| P/WINDOW LH |
25A | Driver Safety Power Window Module, Rear Power Window Switch LH |
| SPARE2 (IG2) |
15A | Not Used |
| E-SHIFTER3 | 10A | Electronic ATM Shift Dial |
| MODULE3 | 10A | Front/Rear Corner Radar LH/RH, Front/Rear Inverter, ADAS Unit (Driving), VESS Unit, Front Radar, Front View Camera, ADAS Unit (Parking), Console Upper Cover Switch |
| USB CHARGER |
15A | Driver/Passenger Seat USB Charger, Front USB Charging Connector, Universal Island UBS Charger Connector |
| MEMORY1 | 15A | PDC Junction Block (Fuse Memory2), Instrument Cluster, A/C Control Module, Console Mood Lamp (Upper/Lower), Console Floor Switch, Driver/Passenger Door Mood Lamp, Rear Door Mood Lamp LH/RH, Instrument Cluster, Instrument Panel Mood Lamp LH/RH, Mood Lamp Unit |
| SPARE3 (B+) |
10A | Not Used |
| A/C2 | 10A | A/C Control Module, High Pressure Valve, Refrigerants Valve #1/#2, P/R Junction Block (Blower Relay), BSA Chiller #1, A/C Coolant Valve |
| AMP | 25A | AMP |
| P/WINDOW RH |
25A | Passenger Safety Power Window Module, Rear Power Window Switch RH |
| MODULE6 | 7.5A | BDC |
| MODULE5 | 10A | Data Link Connector, BDC(Body Domain Controller) |
| SPARE1 (ACC) |
10A | Not Used |
| E-CALL | 10A | Not Used |
| IBU1 | 15A | BDC |
| BRAKE SWITCH |
10A | Stop Lamp Switch, IBU |
| P/SEAT DRV |
30A | Driver Power Seat Switch, Driver Power Seat Module (With IMS) |
| A/C1 | 7.5A | A/C Control Module |
| AIR BAG1 |
15A | SRS Control Module |
| MODULE1 | 10A | AMP, ADP, P/E Junction Block (Power Outlet Relay), BDC, ADAS Unit, A/V & Navigation Keyboard, A/V & Navigation Head Unit |
| MULTI MEDIA |
15A | A/V & Navigation Head Unit |
| DOOR LOCK |
20A | Door Lock Relay, Door Unlock Relay, Two Turn Unlock Relay |
| MODULE8 | 10A | Hazard Lamp Switch, Multifunction Switch, Data Link Connector, Rain Sensor, Puddle Lamp, PTG Unit, Driver Door Module, Driver/Passenger Outside Mirror Unit |
| P/SEAT PASS | 30A | Passenger Power Seat Switch, Passenger Power Seat Module |
| S/HEATER REAER | 25A | Rear Seat Warmer Control Module |
| MODULE7 | 7.5A | Not Used |
| HEATED MIRROR | 10A | Outside Mirror |

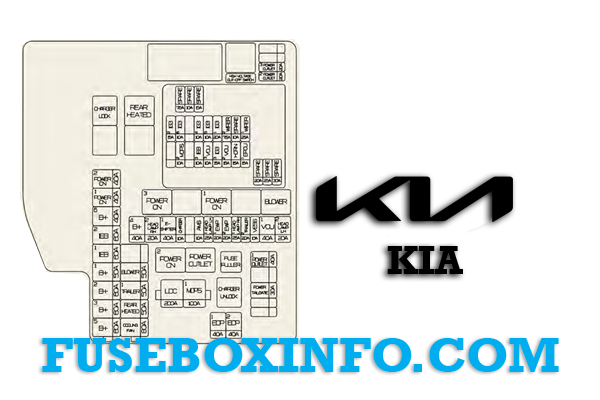

Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| LDC | 180A | P/R Junction Block (Fuse: POWER TAILGATE, EOP1, EOP2, POWER OUTLET1) |
| MDPS1 | 100A | EPS Unit |
| B+6 | 40A | PDC Junction Block (Fuse : MODULE8, AIR BAG2, BMS, E-SHIFTER3, MODULE9, A/C1) |
| B+5 | 60A | PCB Block (IG3 Main Relay, Fuse: EPCU1, VCU2, WIPER1, HORN) |
| B+3 | 60A | PDC Junction Block (Fuse: EPCU3, P/SEAT DRV, P/SEAT PASS, P/WINDOW LH, P/WINDOW RH, AFCU, SUNROOF1, S/HEATER FRT, S/HEATER RR, AMP, MODULE8, LITFGATE OPEN, CHILD LOCK) |
| B+2 | 60A | ICU Junction Block (IPS1, PS6, IPS8, IPS9, IPS10) |
| B+1 | 50A | ICU Junction Block (IPS2, IPS3, IPS5, IPS7, IPS13) |
| IEB1 | 60A | IEB Unit |
| IEB2 | 60A | IEB Unit |
| POWER ON 1 | 40A | P/R Junction Block (ACC Relay, IG1 Relay) |
| POWER ON 2 | 40A | P/R Junction Block (IG2 Relay) |
| COOLING FAN | 80A | Cooling Fan Motor |
| REAR HEATED | 50A | P/R Junction Block (Rear Heated Relay) |
| TRAILER1 | 50A | Trailer Connector Unit |
| BLOWER | 50A | P/R Junction Block (Blower Relay) |
| B+4 | 40A | PDC Junction Block (Long Term Load Latch Relay, Fuse: BDC1, BRAKE SWITCH, AIR BAG2, A/C2, BATTERY MANAGEMENT, MODULE1, IAU, SPARE3 (B+)) |
| E-SHIFTER1 | 40A | P/R Junction Block (E-Shifter Relay, Fuse: E-SHIFTER2) |
| CHARGER1 | 10A | P/R Junction Block (Charger Lock/Unlock Relay), ICCU, VCMS |
| CHARGER2 | 10A | CDM |
| AMS | 10A | 12V Battery Sensor |
| EWP1 | 20A | Electronic Water Pump #1 |
| EWP2 | 20A | Electronic Water Pump #2 |
| TRAILER2 | 20A | Not Used |
| VESS | 10A | VESS Unit |
| VCU1 | 40A | VCU |
| POWER OUTLET1 | 40A | P/R Junction Block (Power Outlet Relay) |
| POWER TAILGATE | 30A | PTG Unit |
| EOP1 | 40A | Rear Electronic Oil Pump |
| EOP2 | 40A | Front Electronic Oil Pump (AWD) |
| E-SHIFTER2 | 10A | P/R Junction Block (E-Shifter Relay), SCU, Electronic ATM Shift Dial |
| POWER OUTLET3 | 20A | Rear Power Outlet |
| POWER OUTLET2 | 20A | Front Power Outlet |
| WIPER1 | 25A | PCB Block (Wiper Main Relay) |
| EPCU1 | 15A | Front Inverter (AWD) |
| SPARE | 10A | Spare |
| HORN | 15A | PCB Block (Horn Relay) |
| WIPER2 | 7.5A | IBU |
| VCU2 | 15A | VCU |
| IG3 1 | 20A | ICU Junction Block (Fuse: IG3 7, IG3 8, IG3 9, IG3 10) |
| IG3 3 | 15A | Electronic Water Pump |
| IG3 5 | 10A | BMS Coolant 3Way Valve |
| VCU3 | 10A | VCU |
| IG3 4 | 10A | Front Inverter (AWD), Electronic Water Pump #1, #2, Electronic A/C Compressor |
| IEB3 | 10A | IEB Unit |
| IG3 6 | 10A | Cooling Fan Motor, Front Electronic Oil Pump (AWD) |
| MDPS2 | 10A | EPS Unit |
| IG3 2 | 15A | VCU |
| RLY. 1 | - | CHARGER LOCK |
| RLY. 2 | - | E-SHIFTER |
| RLY. 3 | - | REAR HEATED |
| RLY. 5 | - | ACC |
| RLY. 7 | - | IG1 |
| RLY. 9 | - | BLOWER |
| RLY. 10 | - | IG2 |
| RLY. 11 | - | POWER OUTLET |
| RLY. 12 | - | CHARGER UNLOCK |
